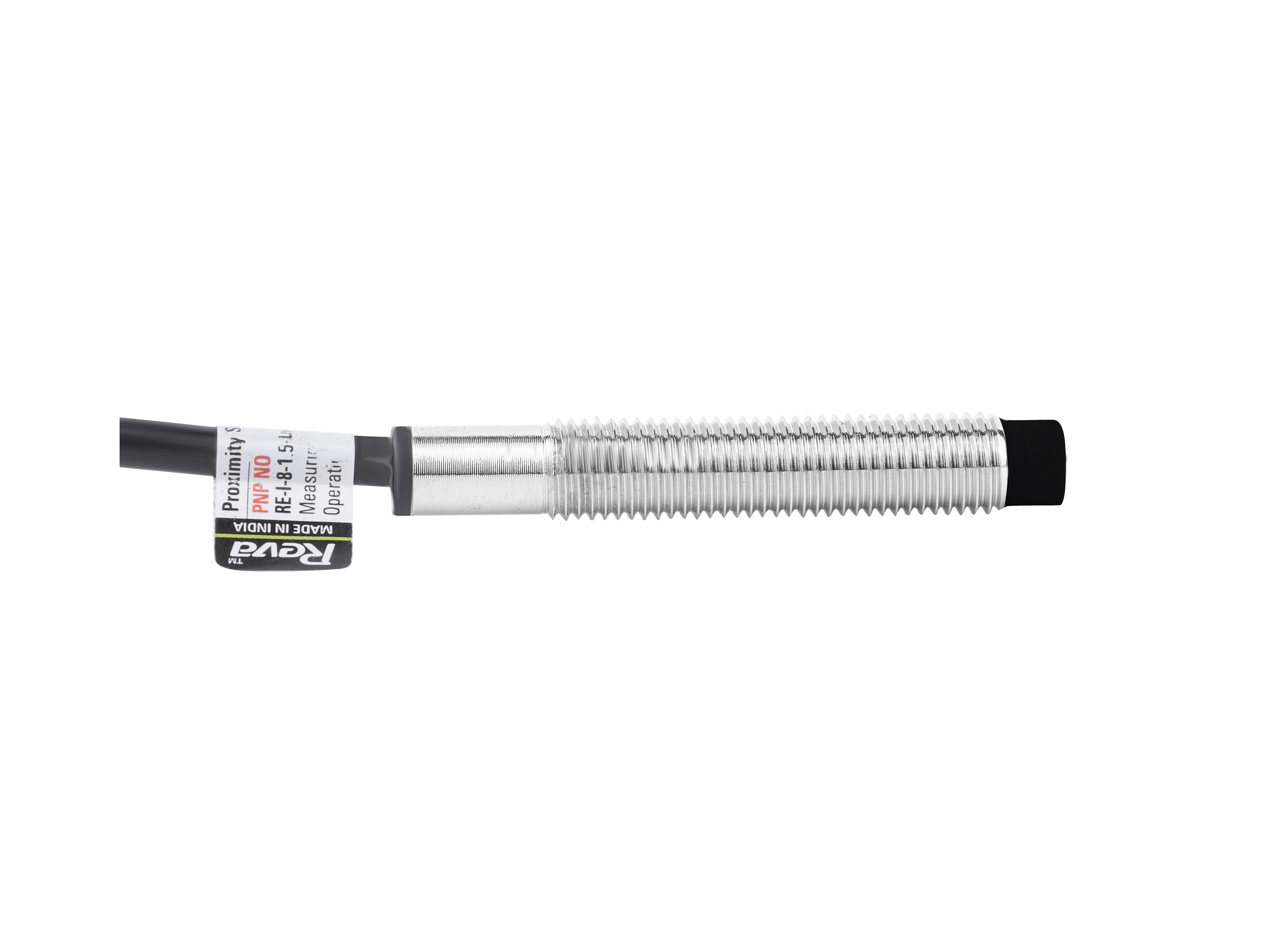

M08 PNP NO+NC (FLUSH) 4Wire Inductive Proximity sensor
Description
- Switching distance: 1.5mm
- Supply Voltage: 10...30VDC
- Installation: FLUSH
- Output: PNP Nc (Normally close)
- Housing Material: Chrome plated brass
- Degree of protection: IP67 ( Water/ Dust resistant)
Technical Specifications
Download CatalogInductive data
| Switching Function | Normally open (NO)+ Normally close (NC) |
| Switching distance | 1.5mm |
| Installation | FLUSH |
| Hysteresis (distance) | Max 10% of sensing distance |
| Output | PNP NO+NC |
Electrical data
| Supply Voltage | 10... 30VDC |
| Current consumption (ub =24v) | < 12mA |
| Response frequency | 500Hz |
| Temperature drift | < 10% |
| Temperature Range | -30 ... 65 u00b0C |
| Switching output voltage drop | < 1v |
| Operating current | 300mA |
| Residual current switching output | < 100 u00b5A |
| Switching state indicator | LED, Red |
| Short circuit protection | Yes |
| Overload protection | Yes |
| Reverse polarity | Yes |
Mechanical data
| Connection type | Cable |
| Housing material | Chrome plated brass |
| Sensing face | PBT, plastic |
| Cable Length | 2 meter |
| Number of cores | 3 core |
| Housing Length | 50mm |
| Housing diameter | 18mm |
| Degree of protection | IP67 (Water /Dust resistant) |
| Weight | 30 g |

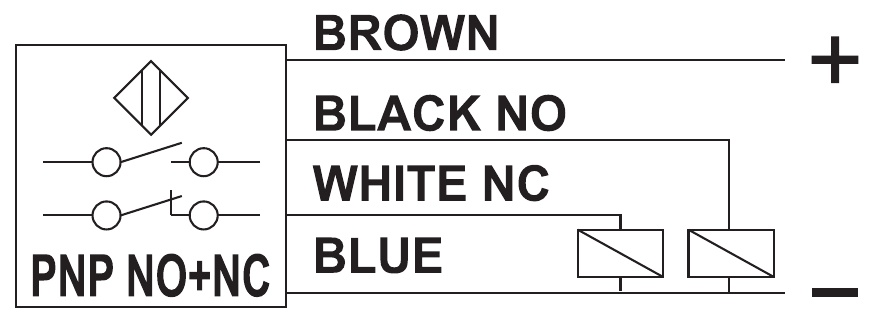

Connection diagram
