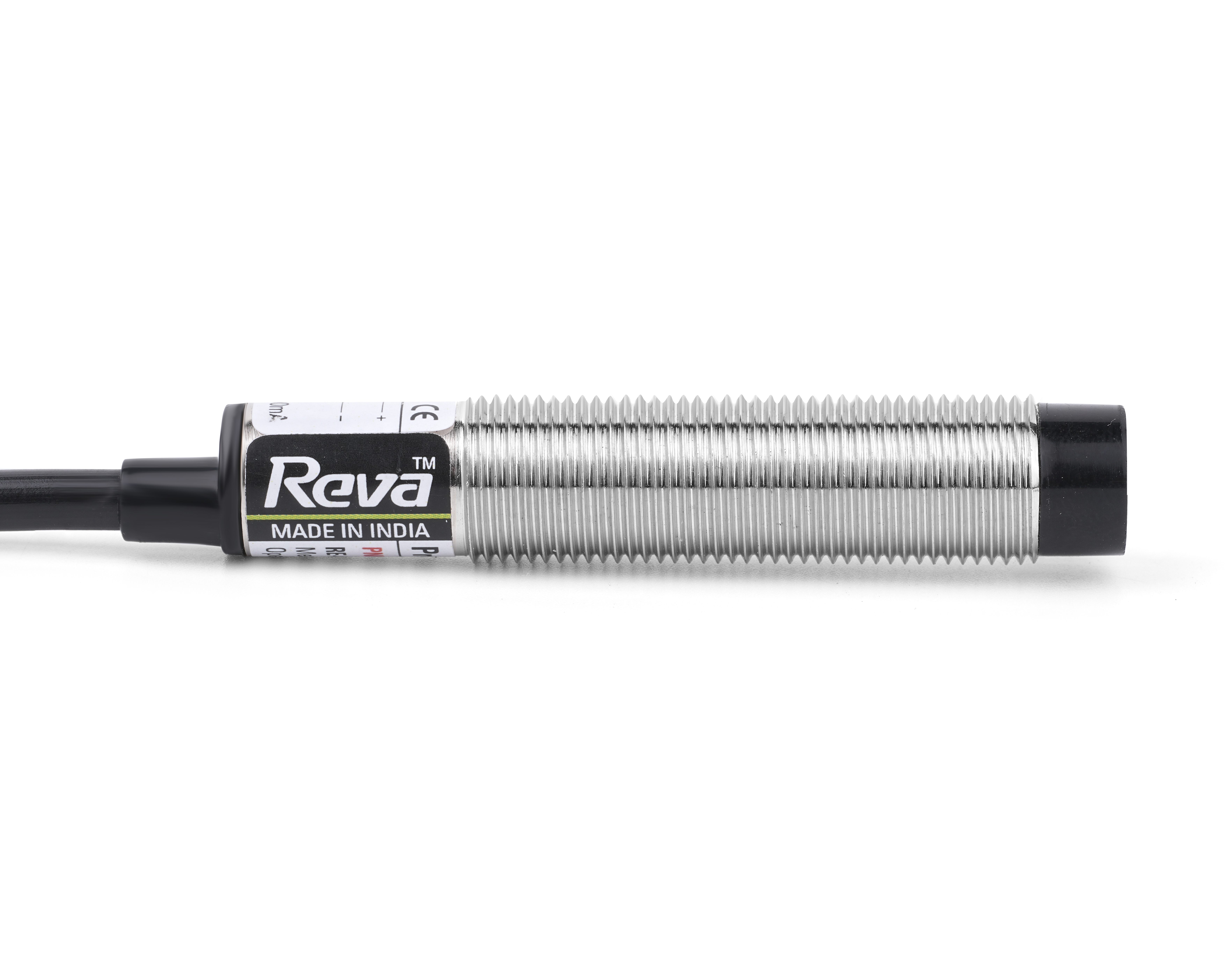

RE-I-18-8-DAOC inductive sensor
Description
Installation : NON-FLUSH Sensing distance : 8mm Standard sensing target : 20×20×1mm(iron) Response frequency : 250Hz
Technical Specifications
Download CatalogInductive Data
| Switching function | Normally open (NO) +Normally close (NC) |
| Switching Distance | 8mm |
| Installation | NON-FLUSH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Output | NPN NO + NC |
Electrical Data
| Supply Voltage | 6..36V DC |
| Current Consumption (Ub = 24 V) | < 12mA |
| Response Frequency | 250Hz |
| Temperature Drift | < 10% |
| Temperature Range | -30 ... 65u00b0C |
| Switching Output voltage Drop | < 1V |
| Operating current | 300mA |
| Residual Current Switching Output | < 100u00b5A |
| Switching state indicator | LED, Red |
| Short Circuit Protection | yes |
| Overload Protection | yes |
| Reverse polarity protection | yes |
Standard and Certeficate
connection diagram

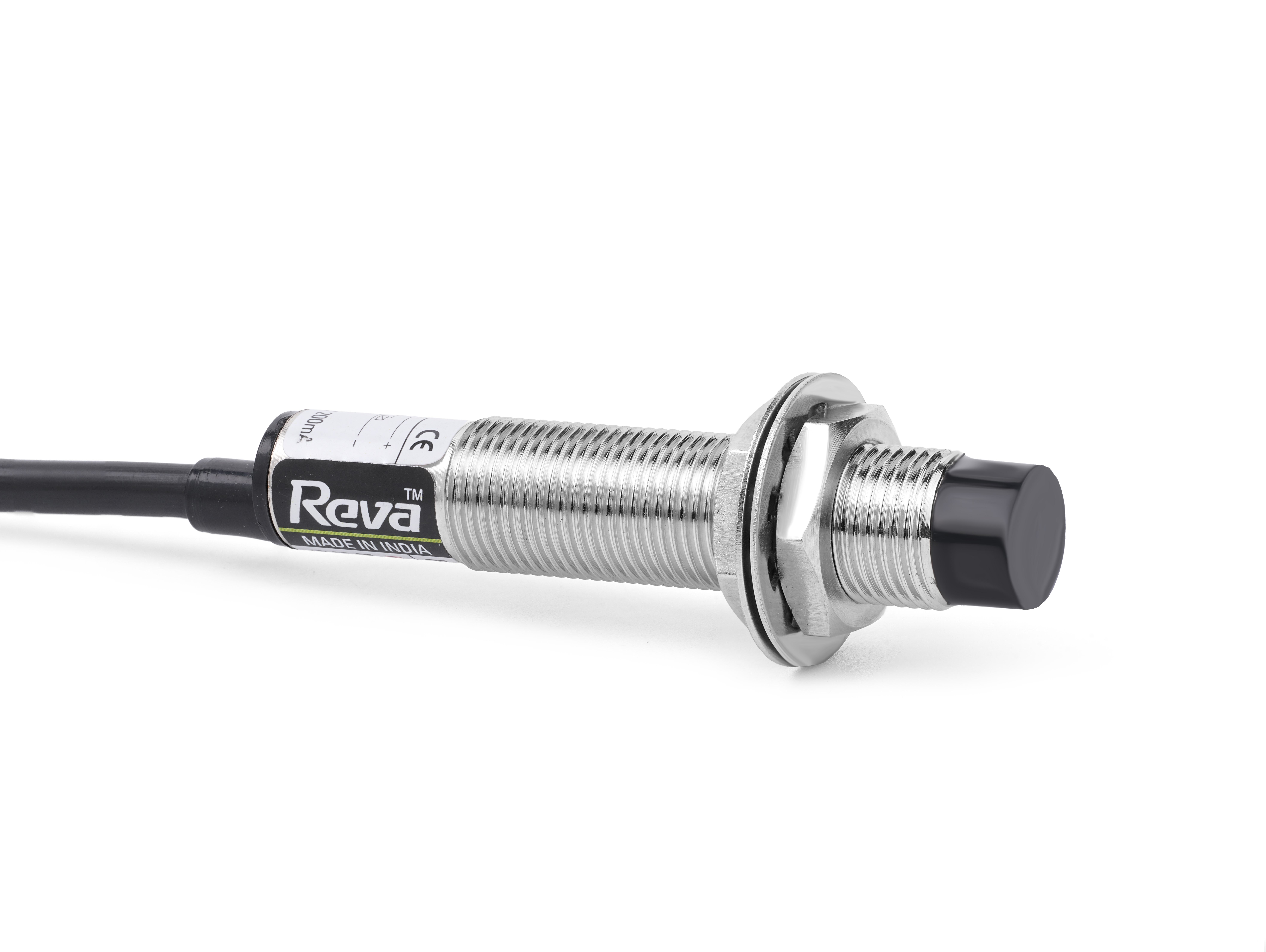

Mounting
Dimensioned picture
